#include <image.hpp>

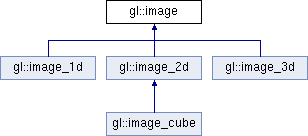

Inheritance diagram for gl::image:

Public Member Functions
virtual	~image ()=0
	Destructs an image. More...

	image (const image &)=delete

	image (image &&)=delete

image &	operator= (const image &)=delete

image &	operator= (image &&)=delete

void	read (std::uint32_t mip_level, std::uint32_t offset_x, std::uint32_t offset_y, std::uint32_t offset_z, std::uint32_t width, std::uint32_t height, std::uint32_t depth, gl::format format, std::span< std::byte > data) const
	Reads pixel data from the image. More...

void	write (std::uint32_t mip_level, std::uint32_t offset_x, std::uint32_t offset_y, std::uint32_t offset_z, std::uint32_t width, std::uint32_t height, std::uint32_t depth, gl::format format, std::span< const std::byte > data)
	Writes pixel data to the image. More...

void	copy (std::uint32_t src_mip_level, std::uint32_t src_x, std::uint32_t src_y, std::uint32_t src_z, image &dst_image, std::uint32_t dst_mip_level, std::uint32_t dst_x, std::uint32_t dst_y, std::uint32_t dst_z, std::uint32_t width, std::uint32_t height, std::uint32_t depth) const
	Copies pixel data from this image into another the image. More...

void	generate_mipmaps ()
	Generates mip subimages. More...

constexpr std::uint8_t	get_dimensionality () const noexcept
	Returns the dimensionality of the image. More...

constexpr bool	is_1d () const noexcept
	Returns `true` if the image is 1D, `false` otherwise. More...

constexpr bool	is_2d () const noexcept
	Returns `true` if the image is 2D, `false` otherwise. More...

constexpr bool	is_3d () const noexcept
	Returns `true` if the image is 3D, `false` otherwise. More...

constexpr format	get_format () const noexcept
	Returns the format and type of the texel blocks contained in the image. More...

constexpr const std::array< std::uint32_t, 3 > &	get_dimensions () const noexcept
	Returns the dimensions of the image. More...

constexpr std::uint32_t	get_mip_levels () const noexcept
	Returns the number of levels of detail available for minified sampling of the image. More...

constexpr std::uint32_t	get_array_layers () const noexcept
	Returns the number of layers in the image. More...

constexpr std::uint8_t	get_flags () const noexcept
	Returns the image flags. More...

constexpr bool	is_cube_compatible () const noexcept
	Returns `true` if the image is cube map compatible, `false` otherwise. More...

Protected Member Functions
	image (std::uint8_t dimensionality, gl::format format, std::uint32_t width, std::uint32_t height, std::uint32_t depth, std::uint32_t mip_levels, std::uint32_t array_layers, std::uint32_t flags)
	Constructs an image. More...

Friends
class	image_view

Detailed Description

Definition at line 36 of file image.hpp.

Constructor & Destructor Documentation

◆ ~image()

gl::image::~image ( )

pure virtual

Destructs an image.

Definition at line 240 of file image.cpp.

◆ image() [1/3]

gl::image::image ( const image & )

delete

◆ image() [2/3]

gl::image::image ( image && )

delete

◆ image() [3/3]

gl::image::image	(	std::uint8_t	dimensionality,
		gl::format	format,
		std::uint32_t	width,
		std::uint32_t	height,
		std::uint32_t	depth,
		std::uint32_t	mip_levels,
		std::uint32_t	array_layers,
		std::uint32_t	flags
	)

protected

Constructs an image.

Parameters

dimensionality	Image dimensionality, on `[1, 3]`.
format	Format and type of the texel blocks that will be contained in the image.
width	Width of the image.
height	Height of the image.
depth	Depth of the image.
mip_levels	Number of levels of detail available for minified sampling of the image.
array_layers	Number of layers in the image.
flags	Image flags.

@except std::invalid_argument Image constructed with unsupported format. @except std::invalid_argument Image dimensions must be nonzero. @except std::invalid_argument Image mip levels must be nonzero. @except std::out_of_range Image mip levels exceed 1 + log2(max(width, height, depth)). @except std::invalid_argument Image array layers must be nonzero. @except std::invalid_argument 1D image must have a height and depth of 1. @except std::invalid_argument 2D image must have a depth of 1. @except std::invalid_argument 3D image arrays not supported. @except std::invalid_argument Cube compatible image must be 2D. @except std::invalid_argument Cube compatible image width and height must be equal. @except std::invalid_argument Cube compatible image array layers must be a multiple of 6.

Definition at line 35 of file image.cpp.

Member Function Documentation

◆ copy()

void gl::image::copy	(	std::uint32_t	src_mip_level,
		std::uint32_t	src_x,
		std::uint32_t	src_y,
		std::uint32_t	src_z,
		image &	dst_image,
		std::uint32_t	dst_mip_level,
		std::uint32_t	dst_x,
		std::uint32_t	dst_y,
		std::uint32_t	dst_z,
		std::uint32_t	width,
		std::uint32_t	height,
		std::uint32_t	depth
	)		const

Copies pixel data from this image into another the image.

Parameters

src_mip_level	Source image level-of-detail number. Level `0` is the base image level. Level `n` is the nth mipmap reduction image.
src_x	Source image texel offset in the X-direction.
src_y	Source image texel offset in the Y-direction.
src_z	Source image texel offset in the Z-direction.
dst_image	Destination image.
dst_mip_level	Destination image level-of-detail number. Level `0` is the base image level. Level `n` is the nth mipmap reduction image.
dst_x	Destination image texel offset in the X-direction.
dst_y	Destination image texel offset in the Y-direction.
dst_z	Destination image texel offset in the Z-direction.
width	Width of the subimage to copy.
height	Height of the subimage to copy.
depth	Depth of the subimage to copy.

Definition at line 432 of file image.cpp.

◆ generate_mipmaps()

void gl::image::generate_mipmaps ( )

Generates mip subimages.

Definition at line 468 of file image.cpp.

◆ get_array_layers()

constexpr std::uint32_t gl::image::get_array_layers ( ) const

inlineconstexprnoexcept

Returns the number of layers in the image.

Definition at line 186 of file image.hpp.

◆ get_dimensionality()

constexpr std::uint8_t gl::image::get_dimensionality ( ) const

inlineconstexprnoexcept

Returns the dimensionality of the image.

Definition at line 144 of file image.hpp.

◆ get_dimensions()

constexpr const std::array<std::uint32_t, 3>& gl::image::get_dimensions ( ) const

inlineconstexprnoexcept

Returns the dimensions of the image.

Definition at line 174 of file image.hpp.

◆ get_flags()

constexpr std::uint8_t gl::image::get_flags ( ) const

inlineconstexprnoexcept

Returns the image flags.

Definition at line 192 of file image.hpp.

◆ get_format()

constexpr format gl::image::get_format ( ) const

inlineconstexprnoexcept

Returns the format and type of the texel blocks contained in the image.

Definition at line 168 of file image.hpp.

◆ get_mip_levels()

constexpr std::uint32_t gl::image::get_mip_levels ( ) const

inlineconstexprnoexcept

Returns the number of levels of detail available for minified sampling of the image.

Definition at line 180 of file image.hpp.

◆ is_1d()

constexpr bool gl::image::is_1d ( ) const

inlineconstexprnoexcept

Returns true if the image is 1D, false otherwise.

Definition at line 150 of file image.hpp.

◆ is_2d()

constexpr bool gl::image::is_2d ( ) const

inlineconstexprnoexcept

Returns true if the image is 2D, false otherwise.

Definition at line 156 of file image.hpp.

◆ is_3d()

constexpr bool gl::image::is_3d ( ) const

inlineconstexprnoexcept

Returns true if the image is 3D, false otherwise.

Definition at line 162 of file image.hpp.

◆ is_cube_compatible()

constexpr bool gl::image::is_cube_compatible ( ) const

inlineconstexprnoexcept

Returns true if the image is cube map compatible, false otherwise.

Definition at line 198 of file image.hpp.

◆ operator=() [1/2]

image& gl::image::operator= ( const image & )

delete

◆ operator=() [2/2]

image& gl::image::operator= ( image && )

delete

◆ read()

void gl::image::read	(	std::uint32_t	mip_level,
		std::uint32_t	offset_x,
		std::uint32_t	offset_y,
		std::uint32_t	offset_z,
		std::uint32_t	width,
		std::uint32_t	height,
		std::uint32_t	depth,
		gl::format	format,
		std::span< std::byte >	data
	)		const

Reads pixel data from the image.

Parameters

mip_level	Level-of-detail number. Level `0` is the base image level. Level `n` is the nth mipmap reduction image.
offset_x	Texel offset in the X-direction.
offset_y	Texel offset in the Y-direction.
offset_z	Texel offset in the Z-direction.
width	Width of the subimage.
height	Height of the subimage.
depth	Depth of the subimage.
format	Format of the image data.
data	Buffer into which image data will be read.

@except std::out_of_range Image read operation mip level out of range. @except std::invalid_argument Image read operation used unsupported format.

Definition at line 245 of file image.cpp.

◆ write()

void gl::image::write	(	std::uint32_t	mip_level,
		std::uint32_t	offset_x,
		std::uint32_t	offset_y,
		std::uint32_t	offset_z,
		std::uint32_t	width,
		std::uint32_t	height,
		std::uint32_t	depth,
		gl::format	format,
		std::span< const std::byte >	data
	)

Writes pixel data to the image.

Parameters

mip_level	Level-of-detail number. Level `0` is the base image level. Level `n` is the nth mipmap reduction image.
offset_x	Texel offset in the X-direction.
offset_y	Texel offset in the Y-direction.
offset_z	Texel offset in the Z-direction.
width	Width of the subimage.
height	Height of the subimage.
depth	Depth of the subimage.
format	Format of the image data.
data	Image data to write.

@except std::out_of_range Image write operation mip level out of range. @except std::invalid_argument Image write operation used unsupported format. @except std::out_of_range Image write operation exceeded image bounds.

Definition at line 289 of file image.cpp.

Friends And Related Function Documentation

◆ image_view

friend class image_view

friend

Definition at line 250 of file image.hpp.
